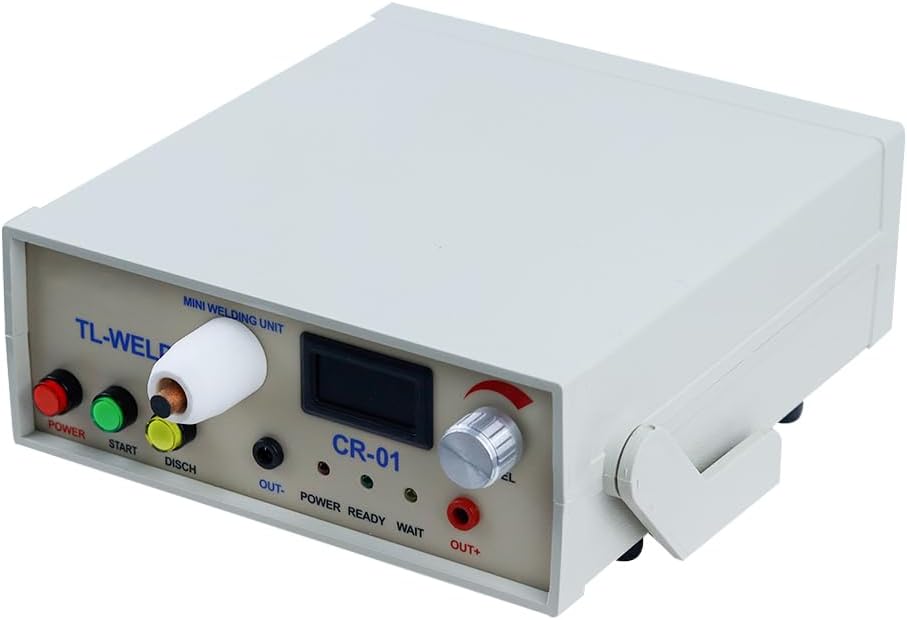

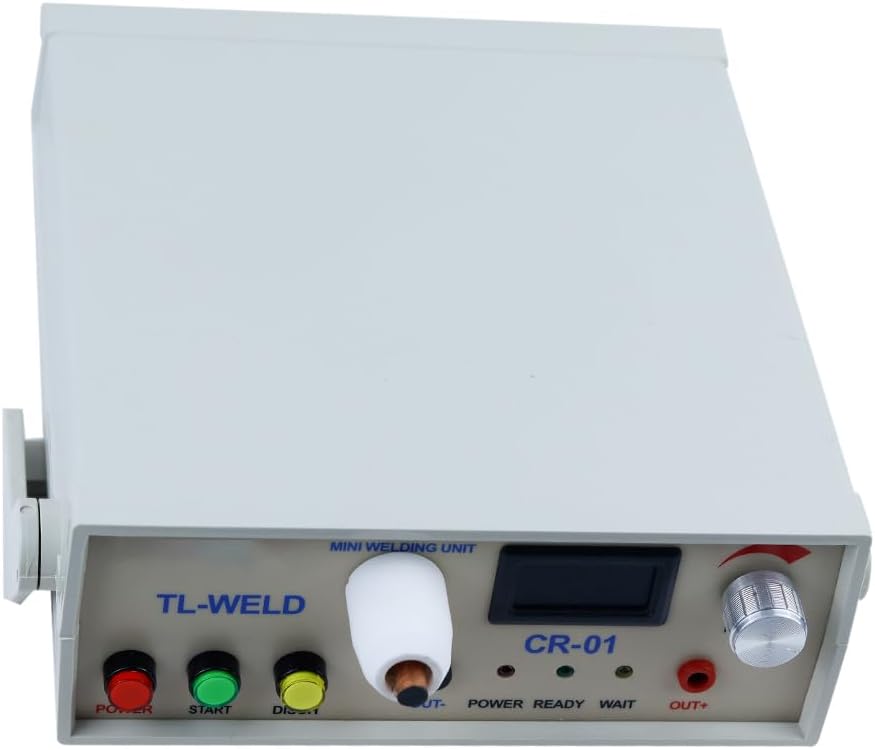

Thermocouple Welding Machine, TL-WELD Temperature Line Spot Welding Machine, CR-01 Thermocouple Wire Ball Joining Machine

Connect the power supply, turn on the power switch, adjust the knob to the desired position, plug in the power welding clamp, put on the protective glasses, hold the two thermocouple wires to be welded, and weld the exposed parts of the thermocouple wires onto the welding electrode. Size: 23cm * 21cm * 8cm Weight: 1.7kg

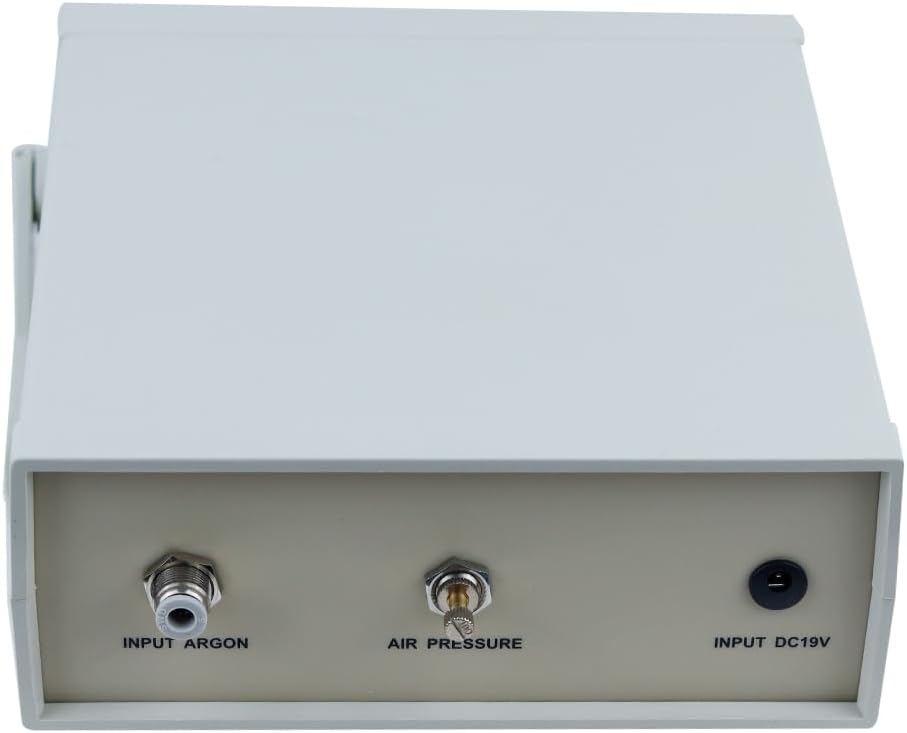

• Practical Design: This thermocouple butt welder adopts a new design architecture, with multiple optimizations in low-power measurement. This welder has an argon protection interface, you can use a foot switch to control the size of argon, welding can be connected to argon or not.
• Welding Tips: Use pliers to lightly clamp the thermocouple two bare wire parts (pliers clamp place from the welding end of the distance of 5mm away from the best, so that you can avoid thermocouple wire welding contraction sticking to the pliers), the strength should be debugged from the small, to find the appropriate point of strength.
• Simple Use: Even if you are not a professional welder, you can easily master the skills of using the thermalcouple welding machine. The average person can produce a qualified product if you follow the instruction to operate.
• Working Principal: Thermocouples butt welder can prompt a strong electric current through the circuit by instantaneous discharge, it can make the cathode and anode of thermocouple knotted into a ball shape under the strong electric current.
• Application: Thermocouple welders are mainly used to produce industrial grade thermocouple connectors, but are also suitable for users of large quantities of thermocouples with open connectors. It is suitable for various temperature wire, thermocouples, JTK and other types of temperature sensing head welding.
